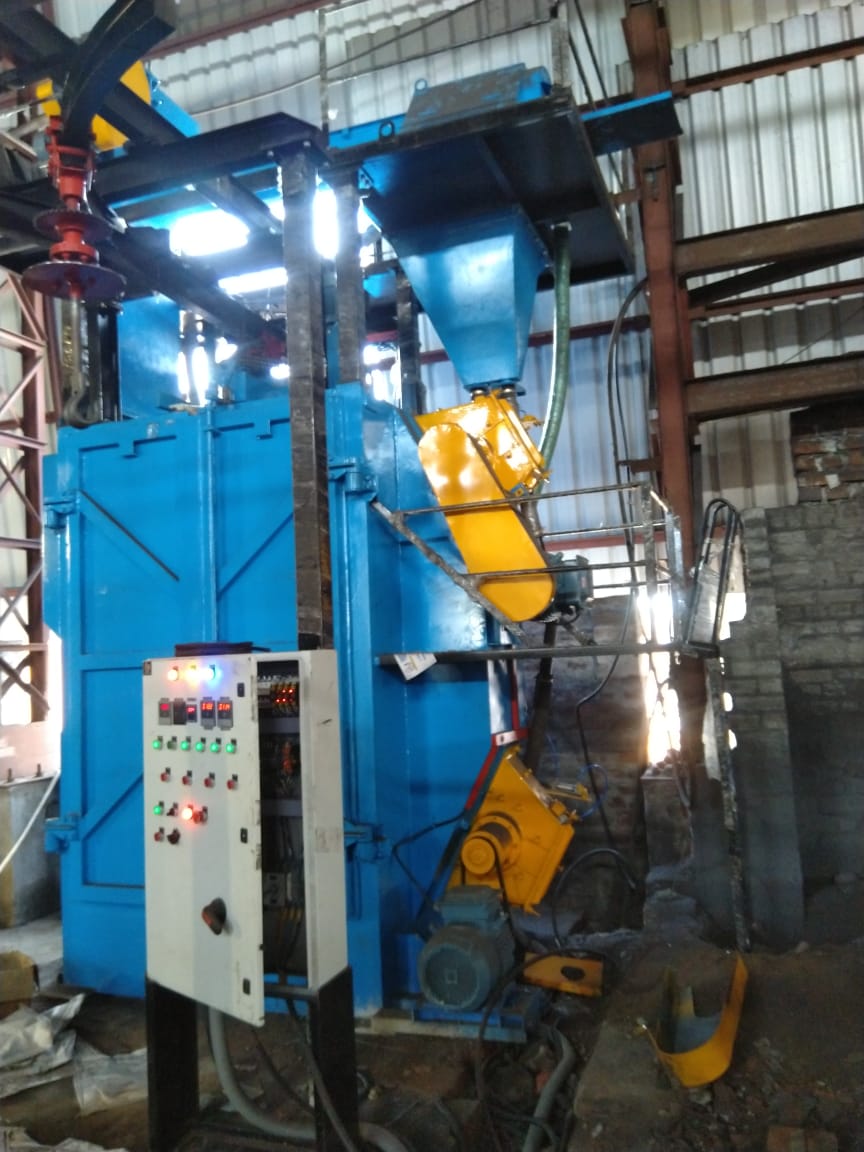

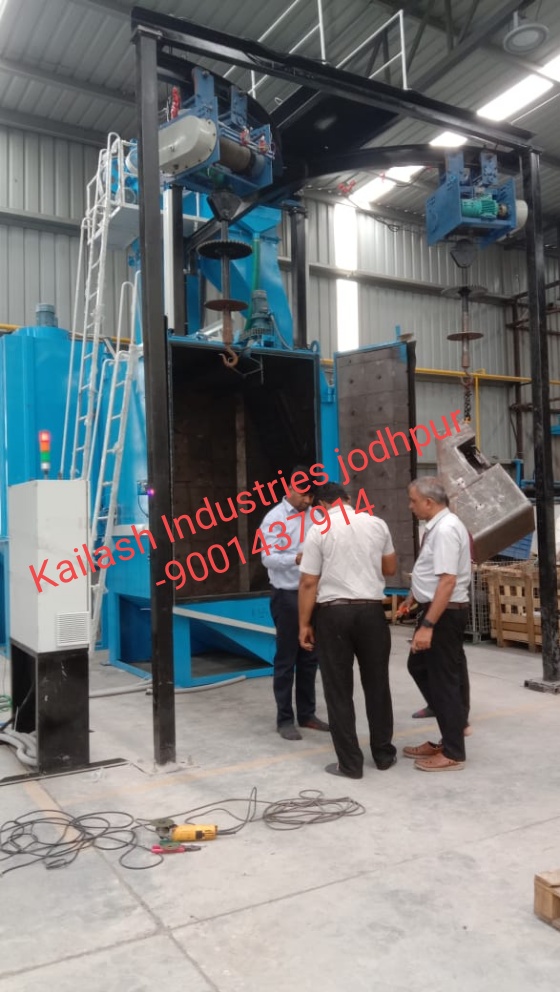

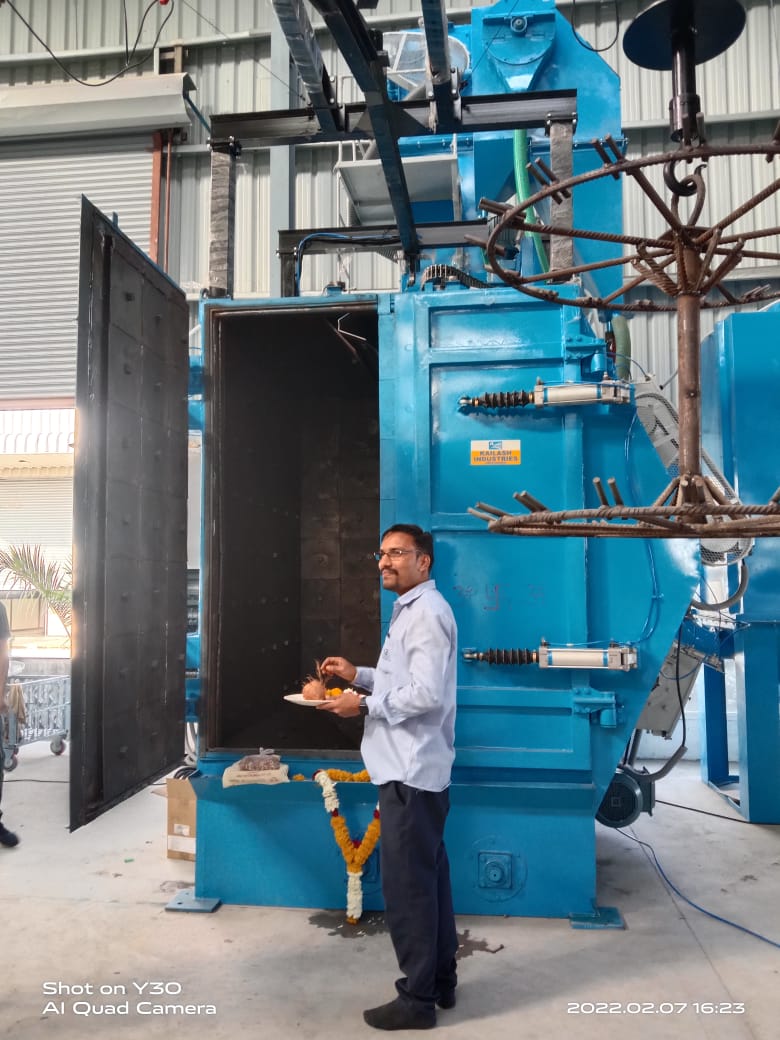

Y-Hanger Type Shot Blasting Machine
During manufacturing, the steel material get corrosion due to environmental effect. The material get blast cleaned and surface is prepared for painting. The number of jobs are to be blasted are hanged on hanger which provide on beams and motorized trolley to take the job inside the cabinet. The job enters the blast cabinet where it is blasted inside cabinet by two or more powerful upward and downward positional blast wheels enabling to cover the entire turning circle of components. The duly blasted job out from the same branch of the ‘Y’ is pushed inside for blast cleaning. The opening & closing of both the doors is pneumatically operated. The air dynamic separation systems continuously segregate usable abrasive from unusable abrasive & debris. The unusable abrasive is transferred in to the storage hopper for recirculation purpose. The abrasive from the storage hopper are transferred the blast wheel unit through feed funnel.
Features of Product
Efficient design with automatic doors and dynamic separation system for continuous operation.
- Pneumatically operated doors
- Upward and downward blast wheels
- Dynamic separation system
- Continuous abrasive recycling
Y-Hanger Shot Blasting Machine Specifications
| Model | KI-ASH-Y-100-120, KI-ASH-Y-120-150, KI-ASH-Y-150-200, KI-ASH-Y-SPL |
| Maximum Job | 1000mm x 1200mm, 1200mm x 1500mm, 1500mm x 2000mm |
| Weight | 750Kg to 1500Kg |
| Blast Wheel Size | 12½ x 2½ to 15½ x 2½ |
| No. Of Blast Wheel | 2 to 3 |
| Motor | 7.5 HP to 15 HP |
| Dust Collector Motor | 5 HP to 15 HP (Bag Filter Type) |
| Abrasive | 750Kg to 2000Kg |
| Blasting Time | 8–10 Minutes |
| Total Power | 25 HP to 68 HP |
Customized machine can be designed as per customer requirement.
