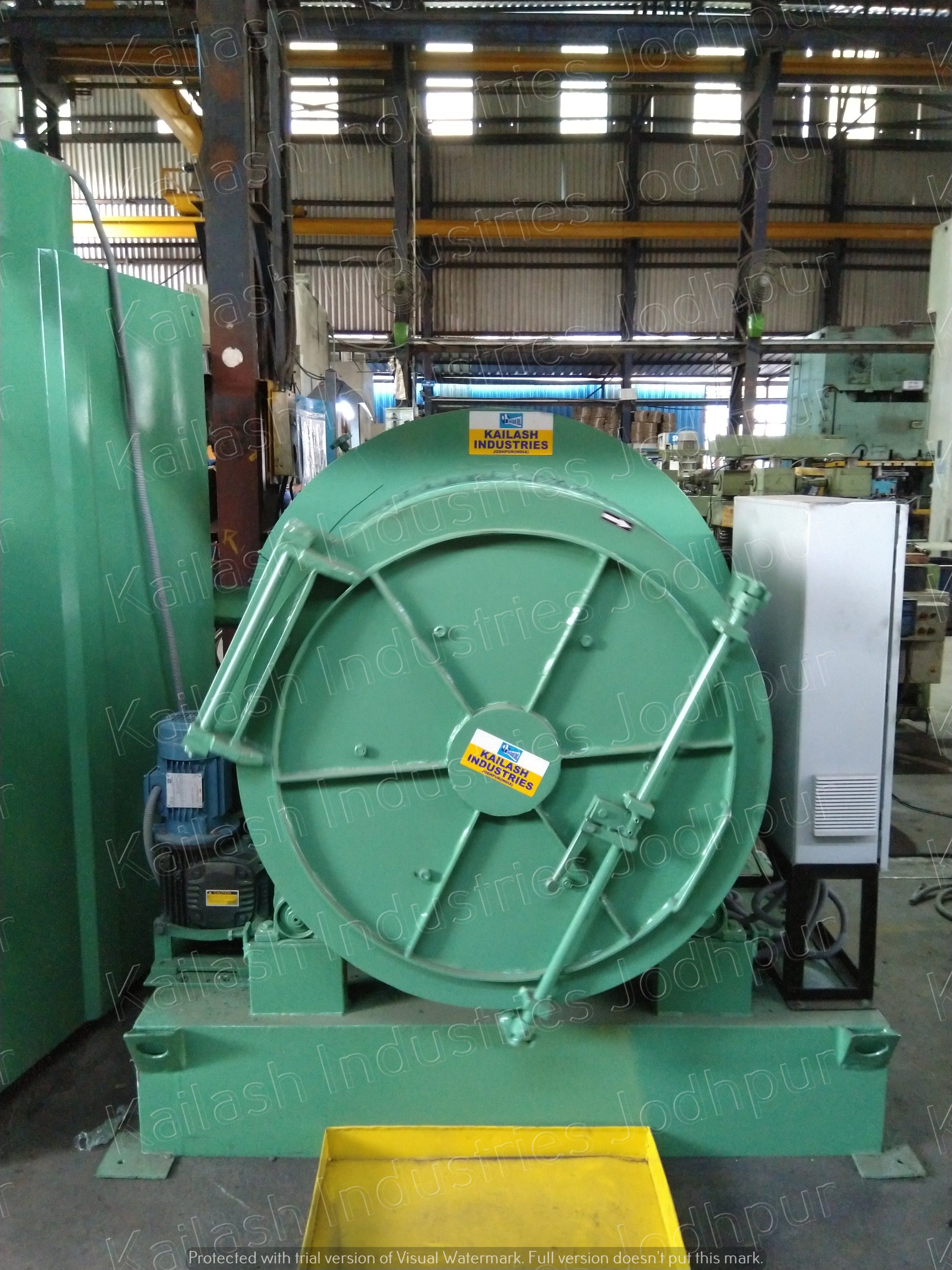

Rotary Barrel Type Shot Blasting Machine
KAILASH INDUSTRIES make Rotary Barrel Type Shot Blasting Machine is suitable for small jobs like cylinder valve, brake shoe, small aluminum casting etc. The machine is very compact that’s why we can run this machine in small factory area. The latest design of blast wheels is incorporated, in order to keep the maintenance costs significantly low. The rubber conveyor belt is rugged and given long life.
Features of Product
Compact machine with low maintenance blast wheels and long-life rubber conveyor belt.
- Compact design for small space
- Low maintenance blast wheel
- Long-life rubber conveyor belt
Rotary Barrel Shot Blasting Machine Specifications
| Model | KI-RBM-01, KI-RBM-02SPL |
| Barrel Size | 575MM(D) x 625MM(L) x 40mm(T), 900MM(D) x 940MM(L) x 40mm(T) |
| Blast Wheel Size | 11½ x 2½, 12½ x 2½ (1 No each) |
| Blast Motor | 3 H.P., 7.5 H.P. |
| Dust Collector | Bag Filter Type |
| Dust Collector Motor | 1 H.P., 3 H.P. |
| Capacity | 75Kg., 150Kg. |
| Abrasive | 50Kg., 85Kg. |
| Blasting Time | 12–15 mins |
| Total Power | 5 H.P., 11.5 H.P. |
Machine used in:
- LPG / CNG / Oxygen cylinder valves
- Small Brass, Copper and SS components
- Brake shoe
- Automobile components etc.
