Structure Shot Blasting Machine

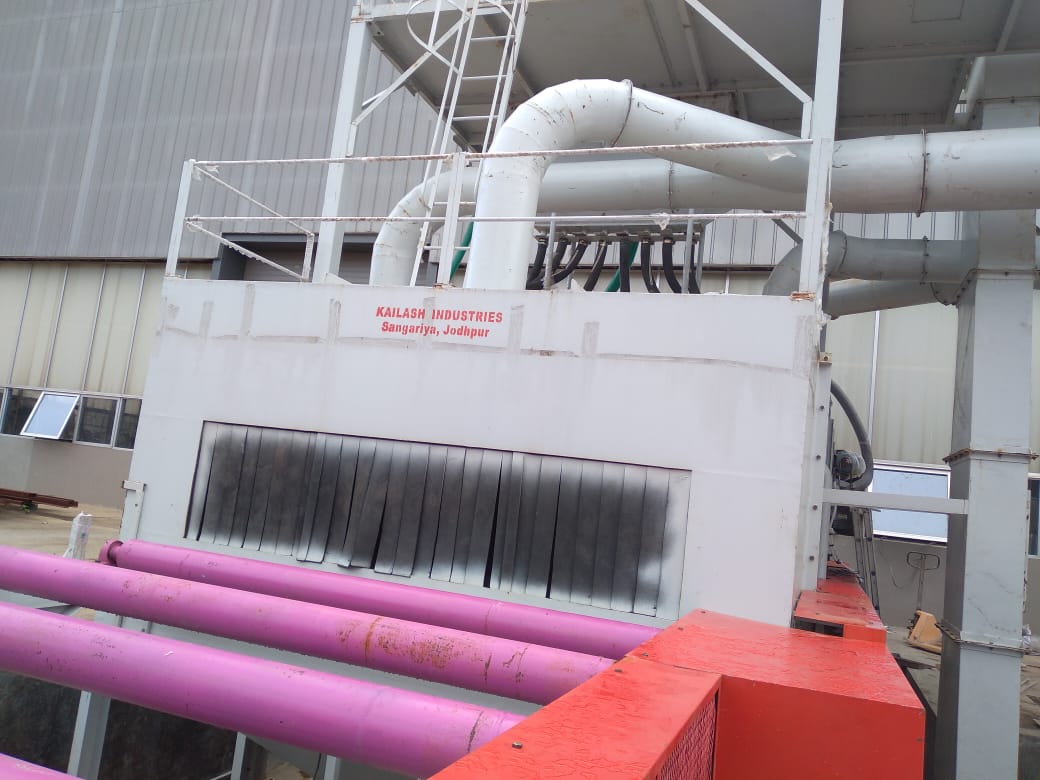

The Structure Shot Blasting Machine is a heavy-duty surface treatment system designed for cleaning, descaling, and preparing large structural steel components, such as I-beams, channels, angles, and plates. The machine consists of a robust blast cabinet with inlet and outlet vestibules equipped with wear-resistant rubber sealing curtains that prevent abrasive spillage during the process.
This machine is equipped with 2 or 4 high-performance blast wheels strategically positioned for maximum coverage, ensuring uniform and consistent blasting of all surfaces. The steel rollers with variable speed drives enable controlled movement of large and heavy components through the blast zone.
The machine features a complete abrasive recovery system including screw conveyors, bucket elevator, rotary screen separator, and a magnetic separator. This setup ensures clean and reusable abrasive is consistently circulated. A high-efficiency dust collection system maintains a clean work environment and prevents dust emissions.
Key Features
Designed for high throughput and uniform surface cleaning of large steel structures.
- Rugged blast cabinet with wear-resistant lining for extended durability
- Multiple high-speed blast wheels for complete surface coverage
- Variable speed roller conveyor for customized blasting cycles
- Complete abrasive recycling and separation system
- High-efficiency cartridge dust collector for clean environment
- Automatic abrasive flow control to ensure optimum blasting


Available Models
Model | KI-RC-AP-2W, KI-RC-AP-4W |
Blasting Wheels | 2 Wheels / 4 Wheels (Optional) |
Conveyor Width | 600mm / 1000mm / 1200mm |
Dust Collector | Cartridge Type Pulse Jet |
Applications
This machine is ideally suited for:
– Surface preparation of structural steel before painting or coating.
– Descaling and rust removal from fabricated steel components.
– Cleaning of beams, channels, plates, and frames.
– Pre-treatment before galvanizing or powder coating.
– Weld seam cleaning and surface roughening for improved adhesion.
– Deburring and edge preparation of heavy steel profiles.
