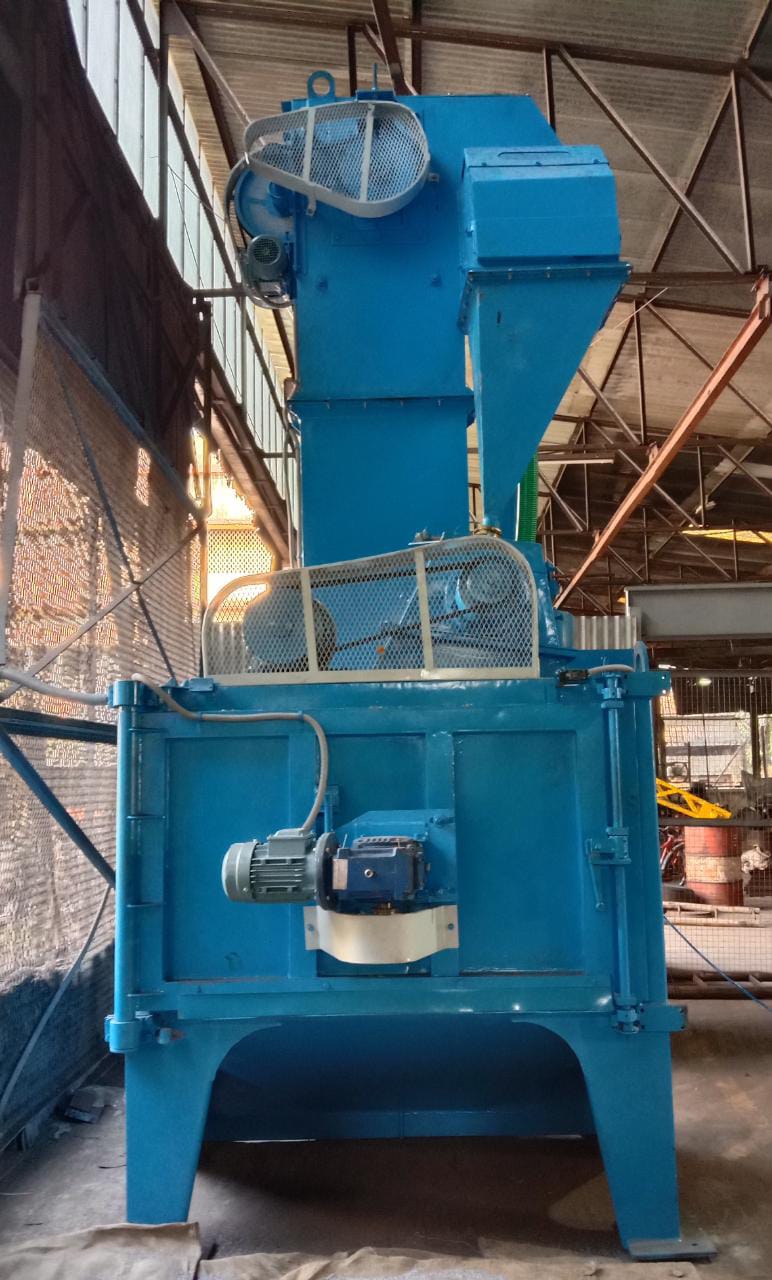

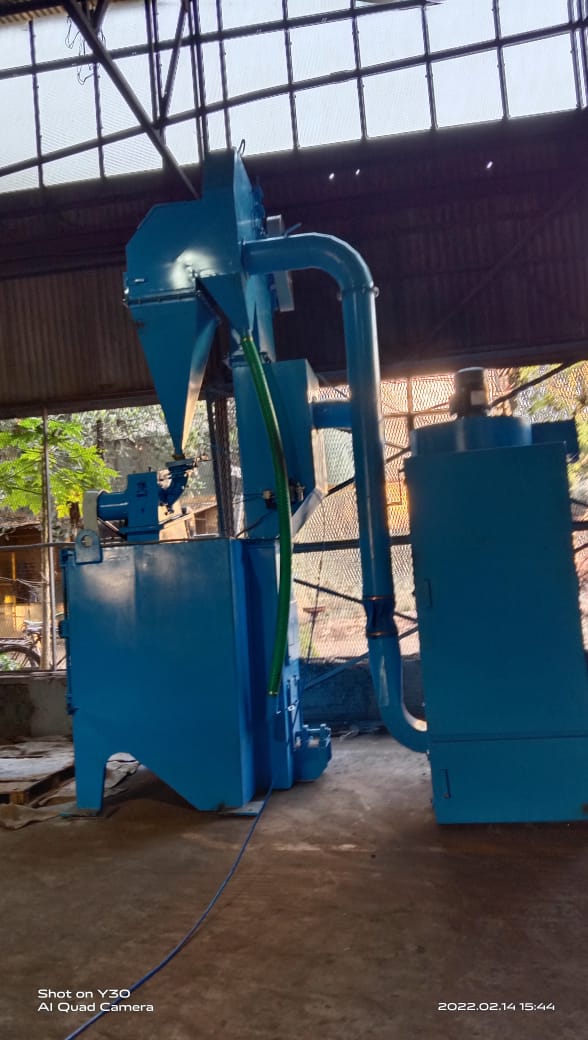

Table Type Shot Blasting Machine
KAILASH INDUSTRIES make Table Type Shot Blasting Machines are sturdy and proven across a wide variety of working conditions. They have been designed to carry out the multifarious jobs of cleaning and peening in lesser time and of a better quality than all other makes of the machine. The machine is equipped with latest design of blast wheels, in order to keep the maintenance costs significantly low. Dust collector options are available, i.e. fabric, cartridge type. The machine is available with various optional features like second door, rotary screen separator, abrasive replenishers, program-logic control system, time control, electric braking system for blast wheel, sound reducers etc.
Features of Product
Reliable design with optional features, low maintenance cost and multiple customization options for efficient cleaning and peening.
- Sturdy and proven design
- Latest design blast wheels
- Various optional features available
- Economical and efficient operation
Table Shot Blasting Machine Specifications
| Model | KI-TT-700, KI-TT-900, KI-TT-1200, KI-TT-1500, KI-TT-1800, KI-TT-2400 |
| Table Size | 700 mm to 2400 mm |
| No Of Table | 1 Or 2 |
| Blast Wheel Size | 12½x2½ to 19½x2½ |
| No Of Blast Wheel | 1 No’s to 2 No’s |
| Motor | 7.5 H.P. to 25 H.P. |
| Dust Collector Motor | 3 H.P. to 10 H.P. (Bag Filter Type) |
| Capacity | 300Kg to 2500Kg |
| Abrasive | 350Kg to 2000Kg |
| Blasting Time | 8-10 Minutes |
| Total Power | 13.5 H.P. to 59 H.P. |
Machine used in:
– Aesthetic finishing of dye castings of aluminum, zinc and alloy steels.
– Desanding and descaling of castings and forgings.
– Shot peening of heavily stressed components.
– Preparation of surfaces for protective coating.
– Cleaning of castings and forgings.
– Removal of heat treated scales.
