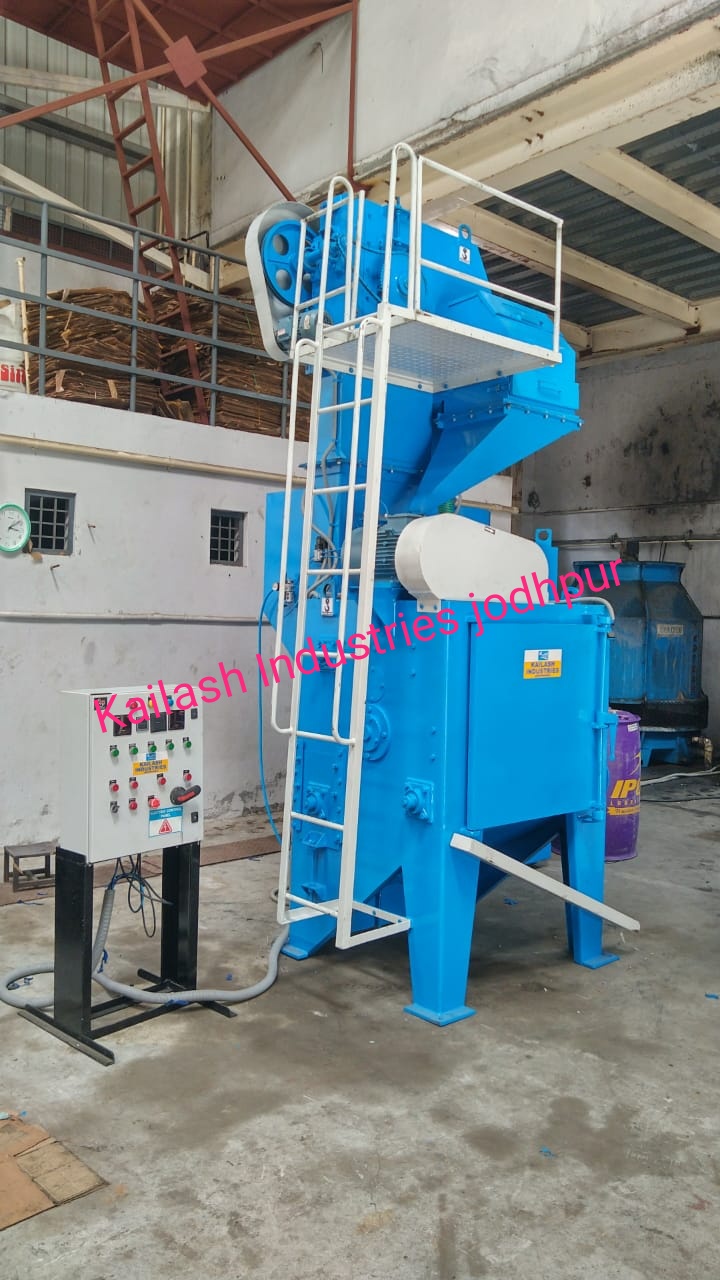

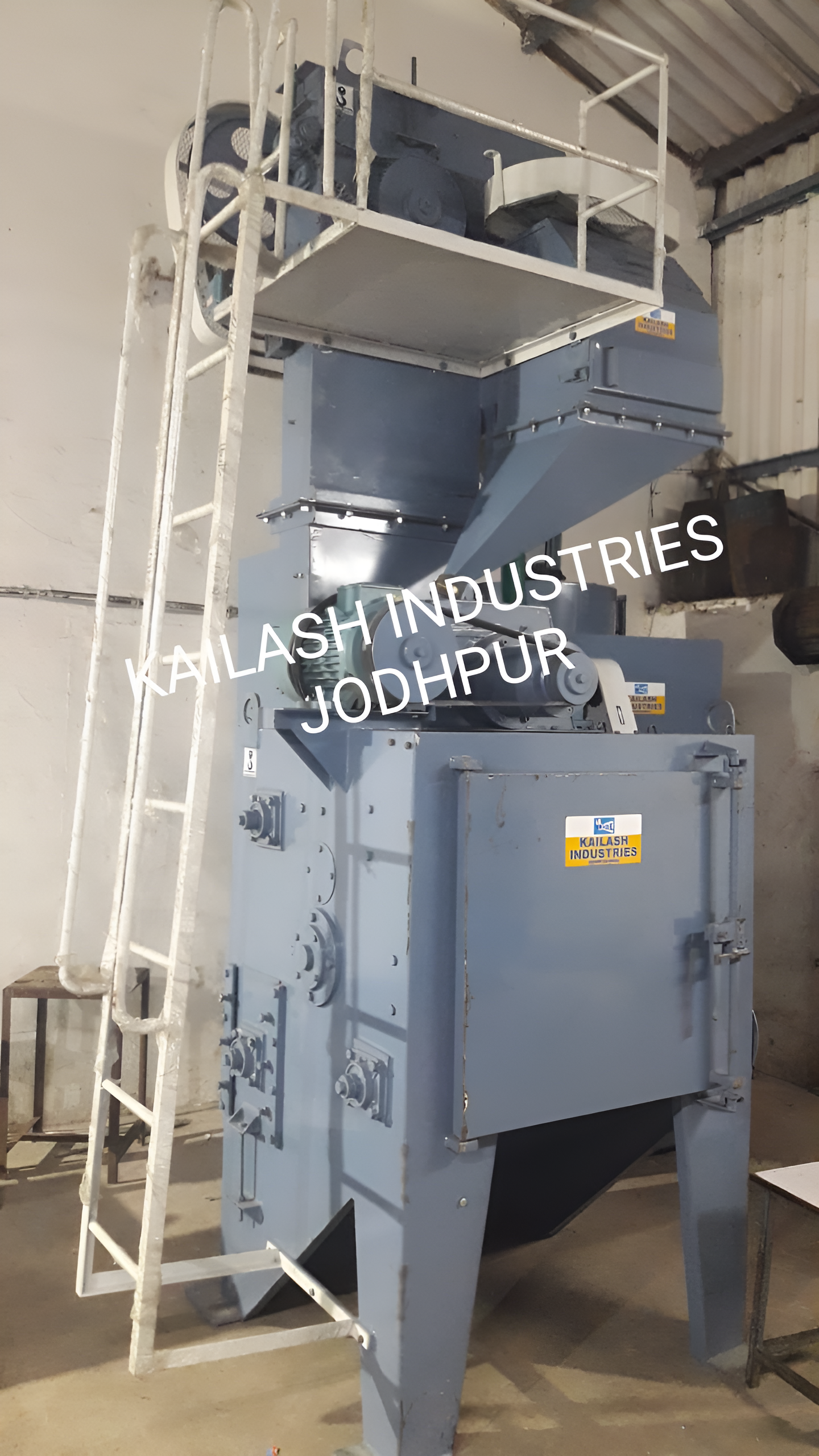

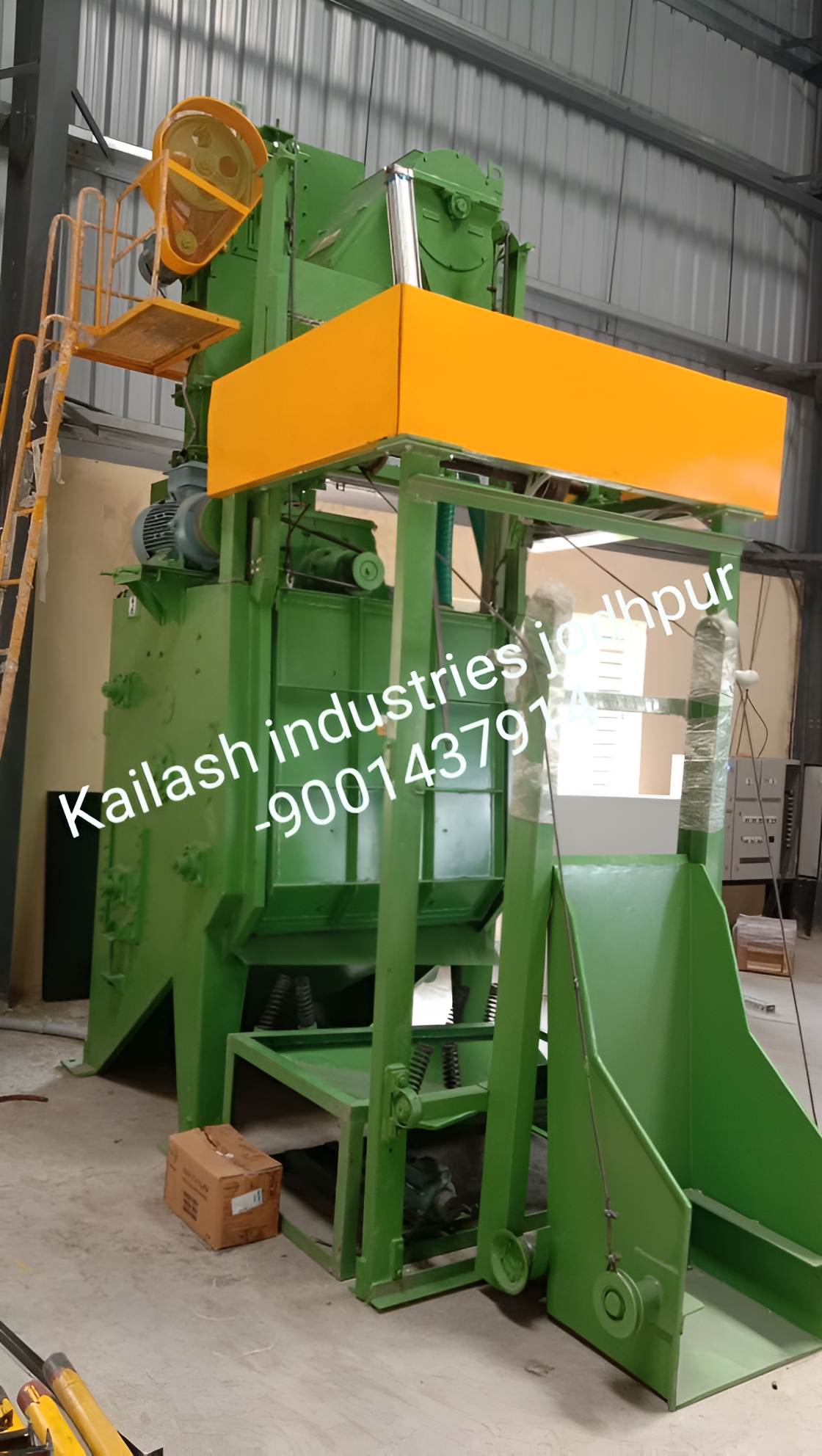

Tumbler Type Shot Blasting Machine

Tumbler Type Shot Blasting Machine

KAILASH INDUSTRIES make Tumbler Type Shot Blasting Machines are sturdy and proven across a wide variety of working conditions. They have been designed to carry out the multifarious jobs of cleaning and peening in lesser time and of a better quality than all other makes of the machine. The machine is equipped with latest design of blast wheels, in order to keep the maintenance costs significantly low. The rubber conveyor belt is rugged and given long life. Hence the machine is most economical in operation.

Features of Product

Reliable design with long-lasting belt and low maintenance cost for efficient cleaning and peening.

Tumbler Shot Blasting Machine Specifications

Model	KI-TBM-12x20, KI-TBM-20x27, KI-TBM-27x36, KI-TBM-36x42
Blast Wheel Size	11½x2½ to 19½x2½ (1 No’s)
Motor	3 HP to 20 HP
Dust Collector Motor	1 HP to 7.5 HP (Bag Filter Type)
Capacity	45 Kg to 500 Kg
Abrasive	50 Kg to 450 Kg
Blasting Time	8–10 Minutes
Total Power	6 HP to 32.5 HP

Machine used in:
– Aesthetic finishing of dye castings of aluminum, zinc and alloy steels.
– Desanding and descaling of castings and forgings.
– Shot peening of heavily stressed components.
– Preparation of surfaces for protective coating.
– Cleaning of castings and forgings.
– Removal of heat treated scales.
